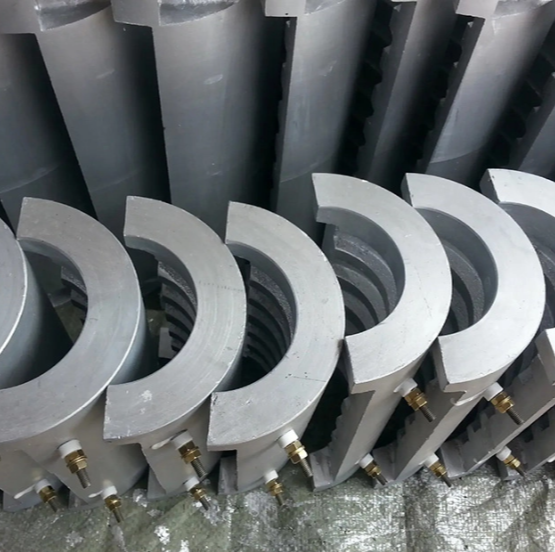

HEXING aluminium heater is a versatile industrial thermal solution crafted from high-purity cast aluminium alloy and precision-engineered heating elements.
Our aluminium heating elements provide rapid, uniform heat distribution across the entire surface, making them ideal for applications requiring consistent temperature control. Each industrial aluminium heater is designed for easy installation and maintenance, offering exceptional performance and durability in moderate to high-temperature industrial processes.
Core Advantages
Cast aluminium construction provides excellent thermal conductivity, ensuring fast heat-up and uniform temperature distribution across the entire heating surface. Precision-machined surfaces eliminate hot spots, ensuring consistent product quality in manufacturing processes. The aluminium alloy structure offers a high strength-to-weight ratio, making the heater lightweight yet durable, reducing installation complexity and extending service life. The optimized design minimizes heat loss, resulting in lower energy consumption and operational costs. Additionally, the heaters are available in various configurations to fit different equipment and installation requirements.
Technical Specifications
Parameter
Standard Range
Customization Available
Operating Temperature
Up to 350°C
Up to 450°C
Voltage
110V-480V AC/DC
Custom voltage ratings
Power Density
0.5-3 W/cm²
Up to 5 W/cm²
Diameter
30mm-600mm
Custom dimensions
Length
100mm-4000mm
Custom lengths
Insulation Resistance
>50 MΩ
-
Dielectric Strength
1500V AC for 1 minute
-
Service Life
>15,000 hours
Extended life options
Production Process
Our cast aluminium heater manufacturing process ensures superior quality and performance. We start with the selection and melting of high-purity aluminium alloy ingots, followed by precision casting using advanced sand casting and die casting techniques. The castings then undergo CNC machining to achieve tight dimensional tolerances, after which high-quality tubular heating elements are inserted. We proceed with sealing and insulation of electrical components, then conduct pressure testing and thermal performance verification. The process concludes with final surface treatment and comprehensive quality inspection.
Applications
Uniform heating aluminium heaters find extensive use in numerous industrial sectors including plastic processing machinery, packaging equipment, printing and drying systems, textile manufacturing, automotive component production, food and beverage processing, HVAC systems and laboratory equipment.
Customization Services
HEXING provides extensive customization capabilities to address unique industrial needs. We offer custom shapes and profiles including flat, curved and cylindrical designs, tailored power outputs and voltage configurations, integrated cooling systems for temperature regulation, special surface treatments for improved heat transfer, custom mounting brackets and hardware, as well as engineering support for application-specific designs.
Why Choose HEXING
HEXING is a leading manufacturer of premium industrial aluminium heaters with a proven track record of delivering reliable heating solutions to industrial clients worldwide. Our state-of-the-art manufacturing facilities and experienced engineering team enable us to produce high-quality heaters that meet the most demanding specifications. We are committed to continuous innovation and customer satisfaction, offering competitive pricing, fast delivery, and comprehensive after-sales support. All our products undergo strict quality control procedures to ensure consistent performance and long-term reliability.
FAQs
What is the difference between cast aluminium and extruded aluminium heaters?
Cast aluminium heaters offer better heat distribution and can accommodate more complex shapes, while extruded aluminium heaters are more cost-effective for simple, linear applications.
Can your aluminium heaters be used in wet environments?
Yes, we offer waterproof and moisture-resistant aluminium heaters suitable for use in damp or wet industrial environments.
Do you provide replacement heating elements for existing heaters?
Yes, we supply replacement heating elements and spare parts for all our aluminium heater models, ensuring minimal downtime for your operations.
PE automatic cutting machine is mainly based on the requirements of PE foam sheet/board for fixed length, fixed width cutting, can work online or offline, cutting size is accurate. Products are suitable for electronic products, toys, fruits, valuable or fragile items packaging, also used for mattresses, children's crawling MATS, splicing MATS, etc.
This machine is a deeply processing equipment of EPE foam sheet/film products, mainly used for the tectorial surface of EPE foam sheet/film.The material can be PE film, plated Aluminium foll, plastic-coated paper, plastic-coated fabric and so on. Laminated foam sheet increases intensity,waterproof ,and can be printed character, picture,improving the products grade, widely used for the packing of box lining, life vest, wooden floor underlayer. Car havelock,Motor adumbral cushion,household appliance.high-top Pottery and so on.
EPE foam net machine is a kind of new soft packing material. Mainly used in the production of PE foam net, it is through extruder and mold production of different sizes of products. Products are mainly used in various fruits, red wine , flowers and various fragile products packaging.
EPE foam pipe is a kind of new-type foam material and it is widely used in the jacket of air conditioner, pipeline heat insulation, toy guardrail and recreation places etc. due to its high foam ratio, good elasticity and heat preservation.
EPE foam sheet machine is a single stage extruding and foaming equipment with large L/D. It takes polyethylene resin with low density as raw material. This production line is the most ideal physical PE forming unit in the world. It has continuons stable performance with high yield,wide range of foaming ratio,high automation and reliability, products have a wide range of applications. The foam sheet has the features of dampproof , shockproof, soundproof, heat preservation and good plasticity.
Fully automatic forming and cutting machine integrates forming, cutting and stacking (trimming) at the same time. It has the features of saving labor, improving efficient, lowing labor intensity and reducing production cost. It adopts PLC controller and touch screen to control the working program.
This production line adopts double-screw foam sheet extrusion technology . PSP foam sheet is a kind of new-type packing material with the features of heat preservation, safety,sanitation and good plasticity. It’s mainly used to make various types of food containers, such as lunch box, dinner trays, bowls etc by thermoforming. It’s also can be used to make advertisement board, industrial products packing and so on. It has stable performance, big capacity, high automation and yields quality products.
XPS foam board,n amed as polystyrene extrusion board(XPS for short) has a flawless closed-pore cell structrue. Its density,water absorption, coefficient of heat conducting and the coefficient of steam pervasion are all lower that those of other board heat preservasion materials and they have the charact eristics of strong intensity, light material, airtight, anticorrosion, aging resistance, low cost, etc. It has been widely used in the fields of heat insulation in the construction indusry,frost resistance of the highway,railway,airport,square and household fitment.It is generally acknowledged the best heat preservation material in the market at present.
Pe foam recycling machine is to put PE foam products into the extruder to melt, at the same time to release the gas in the product and filter the impurities in the product, and then through the die head extrusion drawing, cooling, cutting, drying, packaging, to ensure the quality of particles.
Ps foam recycling machine is to put Ps foam products into the extruder to melt, at the same time to release the gas in the product and filter the impurities in the product, and then through the die head extrusion drawing, cooling, cutting, drying, packaging, to ensure the quality of particles.
This machine is mainly used in thickening EPE Foam Sheet with air as medium of heat conducting, making use of high temperature air to melt EPE Foam Sheet each other, then pressed by the steel roller. This thickened sheet is used widely in construction material, packaging, shoes making, bags and suitcases industry etc. reason structure, high production efficiency, easy to operate etc. The working mode of the machine is divided into vertical and horizontal, mainly according to the product fit thickness to distinguish. Vertical equipment is suitable for low thickness products, horizontal equipment is suitable for large thickness products.
