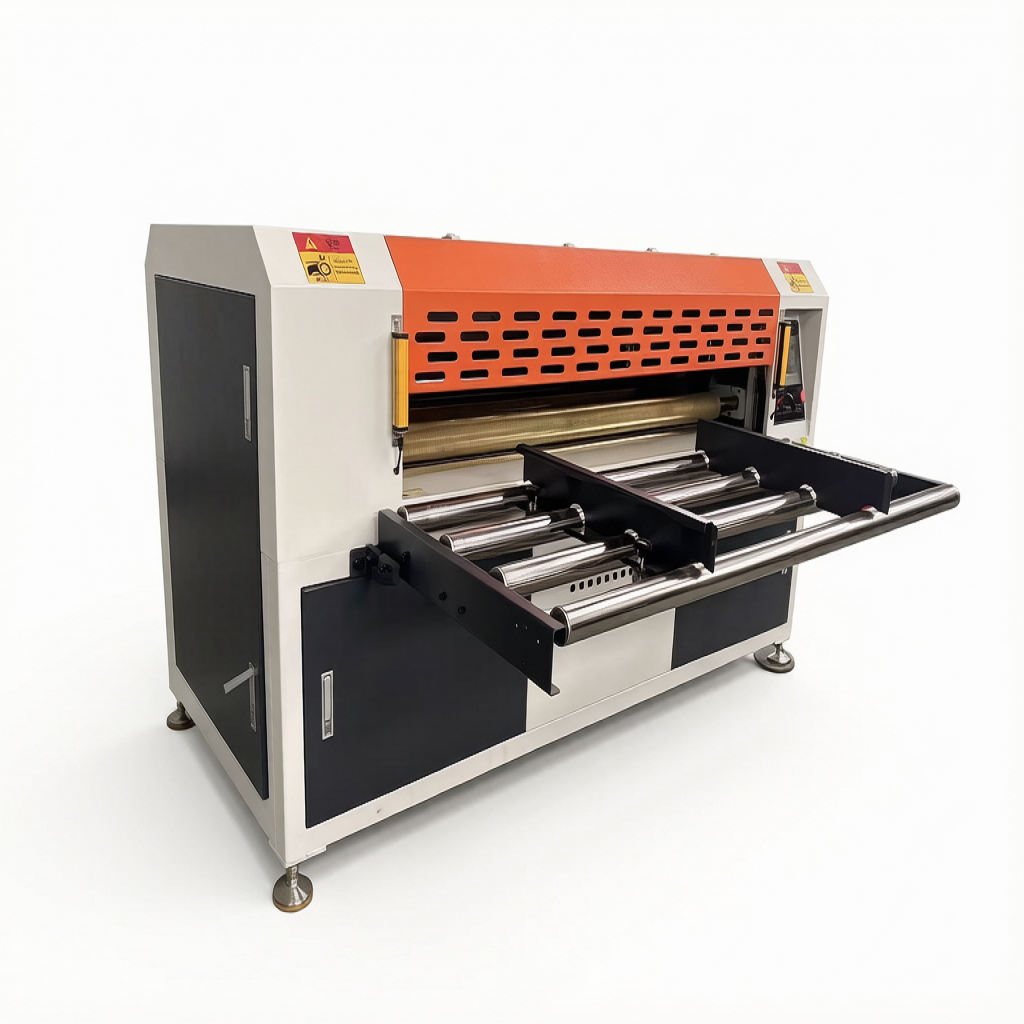

Foamed Polyethylene Sheet Slitting And Cutting Machine
50 Reviews
PE automatic cutting machine is mainly based on the requirements of PE foam sheet/board for fixed length, fixed width cutting, can work online or offline, cutting size is accurate.
HEXING's foamed polyethylene sheet slitting and cutting machine (Model: HXPEH Series) is an all-in-one automated solution designed for simultaneous fixed-width slitting and fixed-length cutting of PE foam sheets and boards. This versatile machine supports both online operation with foam extrusion lines and offline independent operation, making it ideal for large-scale foam converters and packaging manufacturers who require high-volume, continuous production. With cutting-edge servo control technology, it delivers exceptional dimensional accuracy and production efficiency, transforming raw foam rolls into finished sheets of precise sizes in a single pass.
Core Advantages
Integrated Slitting & Cutting Design
Unlike separate slitting and cutting machines, our PE foam sheet slitting cutter combines both processes into one streamlined operation. This eliminates intermediate material handling steps, reduces labor costs by 50% and increases overall production output by up to 60% compared to traditional equipment.
Online & Offline Dual Operation Mode
The machine can be directly connected to foam extrusion lines for real-time online processing, or operated independently to process pre-produced foam rolls. This flexibility allows manufacturers to adapt to different production schedules and order volumes, maximizing equipment utilization.
High-Precision Servo Control System
Equipped with advanced servo motors and PLC control, the EPE foam slitting and cutting machine achieves slitting accuracy within ±0.3mm and cutting length accuracy within ±0.5mm. It ensures consistent dimensions across all finished products, even during long production runs.
Quick Blade Change & Maintenance
The modular blade design allows for fast and easy blade replacement without specialized tools. The machine's open structure provides convenient access to all components for routine maintenance, minimizing downtime and reducing maintenance costs.
Adjustable Tension Control
The precision tension control system ensures smooth feeding of foam rolls of different diameters and thicknesses, preventing material stretching or wrinkling during slitting and cutting. This results in high-quality finished products with uniform dimensions.
Technical Specifications
Parameter
Unit
HXPEH-1200
HXPEH-1500
HXPEH-1800
HXPEH-2000
Maximum Processing Width
mm
1200
1500
1800
2000
Customization Support
-
All machine specifications can be tailored to meet individual production needs
Production Process
Raw foamed polyethylene rolls are mounted onto the machine's unwinding shaft.
The automatic tension control system adjusts to ensure smooth material feeding.
Multiple circular blades simultaneously slit the foam sheet into the desired widths.
The servo-driven cutting knife cuts the slit sheets to the specified lengths.
Finished sheets are automatically stacked neatly on the collection platform.
The machine runs continuously until the entire foam roll is processed.
Applications
The foam sheet slitting and cutting machine is essential equipment for various industries that process large volumes of foamed polyethylene:
Mass production packaging facilities: High-volume manufacturing of protective packaging materials
Foam product factories: Production of mattress liners, yoga mats, and exercise equipment padding
Logistics and shipping industry: Custom-sized foam inserts for shipping containers and boxes
Medical device industry: Sterile packaging components for sensitive medical equipment
Sporting goods industry: Protective padding for helmets, knee pads and other sports gear
Customization Services
HEXING provides extensive customization options to optimize the machine for your production needs:
Custom number of slitting blades to produce multiple sheet widths simultaneously
Automatic unwinding and rewinding systems for high-speed continuous production
Integrated waste collection systems to remove trim scraps automatically
Explosion-proof configurations for use in hazardous environments
Remote monitoring and control systems for smart factory integration
Why Choose HEXING
As a leading manufacturer of foam processing equipment, HEXING combines advanced technology with rigorous manufacturing standards to deliver machines that exceed industry expectations. Our foamed polyethylene cutting machines are designed for maximum productivity and durability, with a service life of over 10 years with proper maintenance. We offer comprehensive pre-sales consultation to help you select the right machine for your application, and our dedicated technical team provides ongoing support throughout the machine's lifecycle. With a proven track record of successful installations worldwide, HEXING is the preferred choice for foam converters seeking reliable, high-performance processing solutions.
FAQs
How many sheets can this machine produce per hour?
The production speed depends on the material thickness and cutting dimensions. For standard 10mm thick PE foam sheets, the machine can produce approximately 800-1200 sheets per hour.
Can this machine slit and cut different types of foam materials?
Yes, in addition to foamed polyethylene (EPE/PE), the machine can also process EVA foam, XPS foam and other similar soft foam materials.
Is training provided for operating the machine?
Yes, we provide comprehensive on-site training for your operators and maintenance staff, covering machine operation, routine maintenance and troubleshooting.
PE automatic cutting machine is mainly based on the requirements of PE foam sheet/board for fixed length, fixed width cutting, can work online or offline, cutting size is accurate. Products are suitable for electronic products, toys, fruits, valuable or fragile items packaging, also used for mattresses, children's crawling MATS, splicing MATS, etc.
This machine is a deeply processing equipment of EPE foam sheet/film products, mainly used for the tectorial surface of EPE foam sheet/film.The material can be PE film, plated Aluminium foll, plastic-coated paper, plastic-coated fabric and so on. Laminated foam sheet increases intensity,waterproof ,and can be printed character, picture,improving the products grade, widely used for the packing of box lining, life vest, wooden floor underlayer. Car havelock,Motor adumbral cushion,household appliance.high-top Pottery and so on.
EPE foam net machine is a kind of new soft packing material. Mainly used in the production of PE foam net, it is through extruder and mold production of different sizes of products. Products are mainly used in various fruits, red wine , flowers and various fragile products packaging.
EPE foam pipe is a kind of new-type foam material and it is widely used in the jacket of air conditioner, pipeline heat insulation, toy guardrail and recreation places etc. due to its high foam ratio, good elasticity and heat preservation.
EPE foam sheet machine is a single stage extruding and foaming equipment with large L/D. It takes polyethylene resin with low density as raw material. This production line is the most ideal physical PE forming unit in the world. It has continuons stable performance with high yield,wide range of foaming ratio,high automation and reliability, products have a wide range of applications. The foam sheet has the features of dampproof , shockproof, soundproof, heat preservation and good plasticity.
Fully automatic forming and cutting machine integrates forming, cutting and stacking (trimming) at the same time. It has the features of saving labor, improving efficient, lowing labor intensity and reducing production cost. It adopts PLC controller and touch screen to control the working program.
This production line adopts double-screw foam sheet extrusion technology . PSP foam sheet is a kind of new-type packing material with the features of heat preservation, safety,sanitation and good plasticity. It’s mainly used to make various types of food containers, such as lunch box, dinner trays, bowls etc by thermoforming. It’s also can be used to make advertisement board, industrial products packing and so on. It has stable performance, big capacity, high automation and yields quality products.
XPS foam board,n amed as polystyrene extrusion board(XPS for short) has a flawless closed-pore cell structrue. Its density,water absorption, coefficient of heat conducting and the coefficient of steam pervasion are all lower that those of other board heat preservasion materials and they have the charact eristics of strong intensity, light material, airtight, anticorrosion, aging resistance, low cost, etc. It has been widely used in the fields of heat insulation in the construction indusry,frost resistance of the highway,railway,airport,square and household fitment.It is generally acknowledged the best heat preservation material in the market at present.
Pe foam recycling machine is to put PE foam products into the extruder to melt, at the same time to release the gas in the product and filter the impurities in the product, and then through the die head extrusion drawing, cooling, cutting, drying, packaging, to ensure the quality of particles.
Ps foam recycling machine is to put Ps foam products into the extruder to melt, at the same time to release the gas in the product and filter the impurities in the product, and then through the die head extrusion drawing, cooling, cutting, drying, packaging, to ensure the quality of particles.
This machine is mainly used in thickening EPE Foam Sheet with air as medium of heat conducting, making use of high temperature air to melt EPE Foam Sheet each other, then pressed by the steel roller. This thickened sheet is used widely in construction material, packaging, shoes making, bags and suitcases industry etc. reason structure, high production efficiency, easy to operate etc. The working mode of the machine is divided into vertical and horizontal, mainly according to the product fit thickness to distinguish. Vertical equipment is suitable for low thickness products, horizontal equipment is suitable for large thickness products.
