Good Plasticity Expanded Polyethylene Foam Roll Making Machine
50 Reviews
polyethylene epe foam extruder machine production line can make different foam sheet widths and thicknesses according to customer requirements. Meanwhile, it can also make foam pipe, foam net, foam rod, foam profile, and so on through changing mould and machine parts. The foam sheet has the features of dampproof, shockproof, soundproof, heat preservation, and good plasticity. After laminating, the foam sheet will get high dampproof performance. These products are mainly used for placing underfloor.

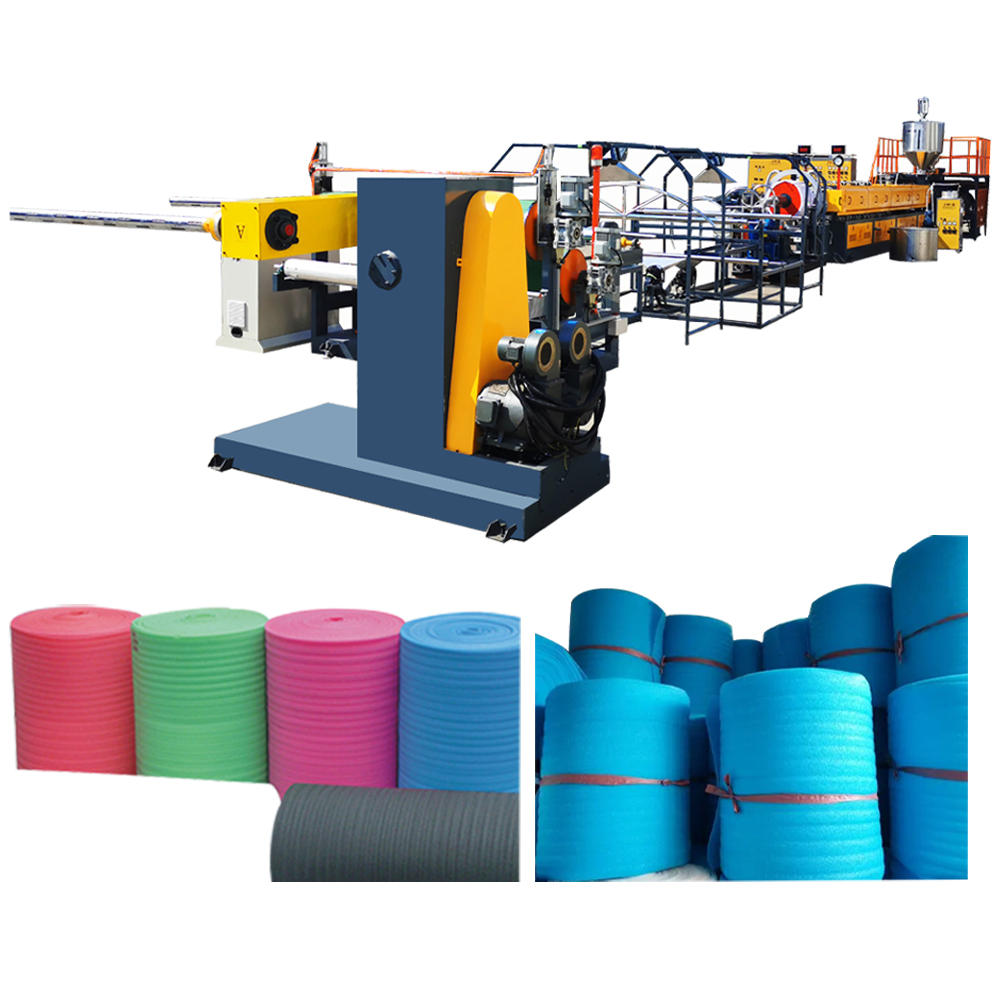

Our expanded polyethylene foam roll making machine (EPE foam sheet production line) is a professional industrial extrusion and foaming solution for high-performance pearl cotton production. Adopting a single-stage extrusion foaming design with a large length-diameter ratio screw, this line uses low-density polyethylene (LDPE) as the core raw material, delivering continuous, stable production of EPE foam sheets, rolls, and customized profiles. It is the ideal physical PE forming equipment for manufacturing enterprises, producing foam products with excellent dampproof, shockproof, sound insulation, heat preservation, and plasticity performance.
Core Advantages
High-Precision Large L/D Screw Extrusion System
The upgraded screw with a 55:1 length-diameter ratio ensures uniform plasticization and stable foaming performance, supporting a wide range of foaming ratios. This design delivers consistent product density and thickness, meeting strict quality requirements for industrial mass production.
Intelligent Control & Material Saving Design
The line is equipped with independent heating zones, a precise temperature control unit, and digital mold pressure monitoring with a septum pressure gauge, ensuring stable product quality and easy operation for factory owners. The automatic hydraulic screen exchange system reduces material waste by approximately 30%, lowering long-term production costs.
High Automation Labor-Saving Structure
The integrated automatic overturning winder with a preset meter counter enables unattended continuous production, with adjustable winding width and length. The variable frequency drive speed regulation system allows flexible adjustment of production parameters, simplifying operation and reducing labor demand.
Multi-Functional Production Compatibility
By changing molds and auxiliary components, this EPE foam extruder machine can produce not only foam sheets and rolls, but also foam pipes, nets, rods, and customized profiles, maximizing equipment utilization for business buyers.
Technical Specifications
Model
Unit
HX-EPE105
HX-EPE120
HX-EPE135
HX-EPE150
HX-EPE180
HX-EPE200
HX-EPE220
Screw Diameter L/D
105/55:1
120/55:1
135/55:1
150/55:1
180/55:1
200/55:1
220/55:1
Foam Rate
20-48
20-48
20-48
20-48
20-48
20-48
20-48
Width Of Product
mm
1000-1800
1000-2000
1000-2000
1000-2000
1000-2000
1000-2000
1000-2000
Thickness Of Product
mm
0.5-6.5
0.8-8
1-10
1-12
2-16
3-18
4-20
Cooling Method
Water Cooling
Capacity
kg/h
80-120
120-200
160-250
180-230
240-300
380-450
450-600
Overall Size
m
23×2.3×2.2
25×2.3×2.2
28×2.3×2.2
30×2.3×2.2
32×2.3×2.2
38×2.8×3.8
40×2.8×3.8
Total Weight(approx)
T
7
9
10
12
15
18
20
The device model can be customized according to the requirements.
Production Process
The EPE foam sheet production line follows a fully automated continuous workflow:
Raw Material Feeding: LDPE resin and corresponding additives are accurately fed into the extruder hopper.
Melting & Mixing: Raw materials are fully melted and uniformly mixed in the large L/D screw extruder, with precise temperature control for optimal plasticization.
Physical Foaming: Environmentally friendly physical foaming agent is injected into the molten material, achieving uniform and stable foaming under controlled pressure and temperature.
Extrusion & Molding: The foamed material is extruded through the die head, forming a continuous foam sheet with preset width and thickness.
Cooling & Shaping: The extruded foam sheet is cooled and shaped via the circulation water cooling system, ensuring stable product dimensions.
Traction & Winding: The finished foam sheet is pulled by the traction unit and wound into rolls by the automatic overturning winder, with preset length and width.
Applications
The EPE foam roll making machine produces products widely used in multiple industries:
Packaging industry: Shockproof packaging for electronics, household appliances, furniture, and fragile products
Construction industry: Underfloor heating insulation, roof and wall thermal insulation, dampproof layers
Automotive industry: Interior shockproof and sound insulation components
Sports and leisure: Protective pads, yoga mats, and sports equipment cushioning
We provide comprehensive customization for our industrial EPE foam extruder machine to fit your unique production needs:
Customizable screw diameter, product width and thickness to match your output and specification requirements
Customized mold design for foam pipes, rods, nets, and special profiles
Compatibility with global voltage standards and branded electrical components (Schneider, Siemens, ABB, etc.)
Full workshop layout design and auxiliary equipment matching based on your factory conditions
Why Choose HEXING
With over 20 years of professional plastic machinery manufacturing experience, HEXING is a trusted supplier for manufacturing enterprises worldwide. Our EPE foam production lines are rigorously tested for quality and stability, with a high repurchase rate from global business buyers. We provide end-to-end support, from pre-sales solution design to after-sales installation, commissioning, and lifetime technical support, ensuring maximum return on investment for our customers.
FAQs
What raw materials are needed for this production line?
The main raw material is low-density polyethylene (LDPE), with auxiliary materials including talc powder, GMS, and butane foaming agent.
Can we produce different foam products with this line?
Yes, by changing the mold and corresponding auxiliary parts, you can produce foam sheets, rolls, pipes, nets, rods, and customized profiles.
What trade and payment terms are available?
We support multiple trade terms including FOB, CIF, CFR, CIP, EXW, with standard payment terms of 30% deposit before production and 70% balance before shipment.
What preparation do we need for the equipment?
You need a standard workshop with power supply, water supply, and corresponding raw materials. We will provide a free customized workshop layout drawing for your installation.
PE automatic cutting machine is mainly based on the requirements of PE foam sheet/board for fixed length, fixed width cutting, can work online or offline, cutting size is accurate. Products are suitable for electronic products, toys, fruits, valuable or fragile items packaging, also used for mattresses, children's crawling MATS, splicing MATS, etc.
This machine is a deeply processing equipment of EPE foam sheet/film products, mainly used for the tectorial surface of EPE foam sheet/film.The material can be PE film, plated Aluminium foll, plastic-coated paper, plastic-coated fabric and so on. Laminated foam sheet increases intensity,waterproof ,and can be printed character, picture,improving the products grade, widely used for the packing of box lining, life vest, wooden floor underlayer. Car havelock,Motor adumbral cushion,household appliance.high-top Pottery and so on.
EPE foam net machine is a kind of new soft packing material. Mainly used in the production of PE foam net, it is through extruder and mold production of different sizes of products. Products are mainly used in various fruits, red wine , flowers and various fragile products packaging.
EPE foam pipe is a kind of new-type foam material and it is widely used in the jacket of air conditioner, pipeline heat insulation, toy guardrail and recreation places etc. due to its high foam ratio, good elasticity and heat preservation.
EPE foam sheet machine is a single stage extruding and foaming equipment with large L/D. It takes polyethylene resin with low density as raw material. This production line is the most ideal physical PE forming unit in the world. It has continuons stable performance with high yield,wide range of foaming ratio,high automation and reliability, products have a wide range of applications. The foam sheet has the features of dampproof , shockproof, soundproof, heat preservation and good plasticity.
Fully automatic forming and cutting machine integrates forming, cutting and stacking (trimming) at the same time. It has the features of saving labor, improving efficient, lowing labor intensity and reducing production cost. It adopts PLC controller and touch screen to control the working program.
This production line adopts double-screw foam sheet extrusion technology . PSP foam sheet is a kind of new-type packing material with the features of heat preservation, safety,sanitation and good plasticity. It’s mainly used to make various types of food containers, such as lunch box, dinner trays, bowls etc by thermoforming. It’s also can be used to make advertisement board, industrial products packing and so on. It has stable performance, big capacity, high automation and yields quality products.
XPS foam board,n amed as polystyrene extrusion board(XPS for short) has a flawless closed-pore cell structrue. Its density,water absorption, coefficient of heat conducting and the coefficient of steam pervasion are all lower that those of other board heat preservasion materials and they have the charact eristics of strong intensity, light material, airtight, anticorrosion, aging resistance, low cost, etc. It has been widely used in the fields of heat insulation in the construction indusry,frost resistance of the highway,railway,airport,square and household fitment.It is generally acknowledged the best heat preservation material in the market at present.
Pe foam recycling machine is to put PE foam products into the extruder to melt, at the same time to release the gas in the product and filter the impurities in the product, and then through the die head extrusion drawing, cooling, cutting, drying, packaging, to ensure the quality of particles.
Ps foam recycling machine is to put Ps foam products into the extruder to melt, at the same time to release the gas in the product and filter the impurities in the product, and then through the die head extrusion drawing, cooling, cutting, drying, packaging, to ensure the quality of particles.
This machine is mainly used in thickening EPE Foam Sheet with air as medium of heat conducting, making use of high temperature air to melt EPE Foam Sheet each other, then pressed by the steel roller. This thickened sheet is used widely in construction material, packaging, shoes making, bags and suitcases industry etc. reason structure, high production efficiency, easy to operate etc. The working mode of the machine is divided into vertical and horizontal, mainly according to the product fit thickness to distinguish. Vertical equipment is suitable for low thickness products, horizontal equipment is suitable for large thickness products.
