Our EPE foam machines apply for the production of EPE foam materials. After thawing the LDPE resin mixed with butane gas, talcum powder, anti-shrink agent and other agents. With different mold heads, the extruder can foam and form various shapes of products, such as sheet, tube, rod, angle profiles (L or U), round and batten. Then use the different ancillary equipment to roll, cut, laminate or coating.
HEXING’s Plastic EPE Tube Extrusion Making Machine is a specialized extrusion system built for industrial manufacturing enterprises focused on polyethylene foam profile production. This versatile EPE foam tube extrusion line processes LDPE resin blended with butane foaming agent, anti-shrink agents and functional additives, and produces various EPE foam products including tubes, rods, angle profiles (L/U type), round strips and battens via interchangeable mold heads. Our PE foam pipe making machine is widely recognized for its stable foaming performance, flexible product switching, and high adaptability for small-batch and mass commercial production, with multiple model options to cover diverse product specification demands.
Core Advantages
Dual Cooling System for Superior Forming Quality
Unlike single-cooling extrusion equipment, our EPE foam rod production equipment adopts a combined water and air cooling system, which achieves precise temperature control during the forming process, ensuring uniform foaming structure, excellent rebound elasticity and consistent dimensional accuracy of finished tubes and rods. This design greatly reduces defective rates for industrial clients, even for long-term continuous production.
Flexible & Efficient Production Configuration
The machine features variable frequency drive for stepless speed regulation, with a screw equipped with independent multi-zone heating system. This structure ensures accurate plasticization, simple operation and convenient maintenance, supporting fast switching between different product molds to meet diverse production demands. The hydraulic automatic screen exchange system reduces material waste by around 30%, cutting production costs and improving overall operational efficiency for manufacturing facilities.
Wide Adaptability for Diverse Foam Profiles

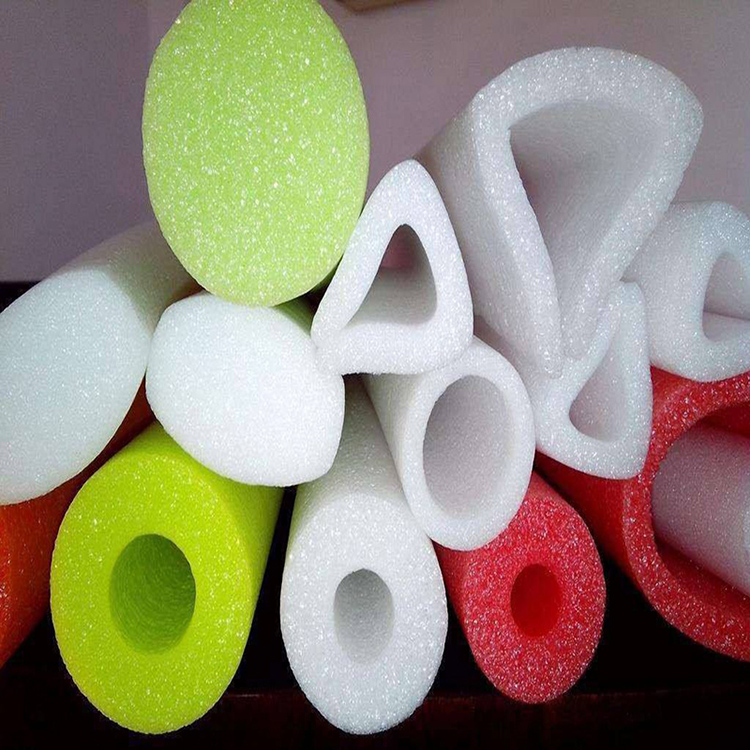

With customizable mold heads and auxiliary equipment, this polyethylene foam profile extruder can produce not only EPE foam tubes and rods, but also various special-shaped profiles including L-type and U-type angle beads. Paired with optional auxiliary equipment, it supports subsequent processing such as cutting, laminating and coating, realizing one-stop production for industrial clients.
Technical Specifications
Model
Unit
HXEPEG-70
HXEPEG-75
HXEPEG-90
HXEPEG-105
HXEPEG-120
HXEPEG-135
Screw diameter L/D
70/55:1
75/55:1
90/55:1
105/55:1
120/55:1
135/55:1
Pipe specification
mm
20-40
20-50
30-80
40-100
50-120
60-130
Rod specification
mm
6-30
8-35
15-50
18-70
20-80
30-100
Cooling method
Water cooling and Air cooling
Overall size
m
15*1.3*1.7
16*1.3*1.7
18*1.5*2
20*1.8*2
22*2*2
25*2*2
The device model can be customized according to the requirements.
Production Process
The production workflow of our Plastic EPE Tube Extrusion Making Machine is a fully automated continuous extrusion forming process: 1. Raw material preparation: LDPE resin is uniformly mixed with butane foaming agent, talcum powder and other functional additives; 2. Plasticization & extrusion: The mixture is fed into the extruder, heated, melted and fully plasticized under precise temperature control; 3. Foaming & forming: The molten material is foamed and molded into target shapes (tube, rod, profile) through customized mold heads; 4. Cooling & sizing: The formed products are cooled and sized via the dual water and air cooling system to ensure dimensional stability; 5. Finishing: The finished products are cut, wound or collected via matched auxiliary equipment for subsequent processing.
Applications
This EPE foam tube extrusion line is an essential production equipment for industrial manufacturing enterprises across multiple industries: HVAC industry (insulation jackets for air conditioning pipes, central air conditioning duct systems); Solar and heating industry (insulation pipes for solar water heaters and ground radiation heating systems); Construction industry (filling strips for expansion joints, edge sealing profiles); Furniture and mattress industry (filling rods for spring mattresses, sofa edges and backrests); Toy and recreation industry (guardrails for children’s toys and recreation facilities); Fluid transportation industry (protective sleeves for indoor water pipes, hot water pipes, liquid food delivery pipes and chemical delivery systems).
Customization Services
HEXING offers tailored customization solutions for industrial production clients to match unique production requirements. We can adjust core parameters of the Plastic EPE Tube Extrusion Making Machine, including screw diameter, applicable product specification range, cooling configuration, overall dimensions, voltage and core component brands. We also provide customized mold design for special-shaped profiles, and free workshop layout planning to fit your production site perfectly.
Why Choose HEXING
As a professional foam extrusion equipment manufacturer with over 20 years of R&D and production experience, HEXING provides reliable, high-performance extrusion solutions for industrial clients worldwide. We use top-tier core components from globally recognized brands including Siemens, Mitsubishi, ABB and Schneider to ensure long-term stable operation of the equipment. We offer a 12-month warranty after installation and commissioning, lifetime maintenance support, and free remote technical consultation. Our experienced engineers can be dispatched to your facility for on-site installation, commissioning and operator training until your team is fully proficient in equipment operation.
FAQs
What core components are used in this EPE tube extrusion machine?
We adopt globally renowned brand components for core parts, including Siemens, Mitsubishi, ABB, Schneider, Delta and CHNT, to ensure stable performance and long service life of the equipment. We can also adjust component brands according to your specific requirements.
What is your delivery and payment terms?
We accept multiple trade terms including EXW, FOB, CIF, CFR and CIP. The standard payment term is 30% or 50% T/T deposit before production, with the balance paid in full before shipment. We also accept L/C for large orders. The delivery time is determined by the order quantity, and production will be arranged immediately upon receipt of your deposit.
Do you provide testing before equipment delivery?
Yes, we will complete full testing and commissioning of the equipment before delivery, and send operation videos to you for confirmation. The equipment will only be shipped after it passes all performance tests and meets your production requirements.
PE automatic cutting machine is mainly based on the requirements of PE foam sheet/board for fixed length, fixed width cutting, can work online or offline, cutting size is accurate. Products are suitable for electronic products, toys, fruits, valuable or fragile items packaging, also used for mattresses, children's crawling MATS, splicing MATS, etc.
This machine is a deeply processing equipment of EPE foam sheet/film products, mainly used for the tectorial surface of EPE foam sheet/film.The material can be PE film, plated Aluminium foll, plastic-coated paper, plastic-coated fabric and so on. Laminated foam sheet increases intensity,waterproof ,and can be printed character, picture,improving the products grade, widely used for the packing of box lining, life vest, wooden floor underlayer. Car havelock,Motor adumbral cushion,household appliance.high-top Pottery and so on.
EPE foam net machine is a kind of new soft packing material. Mainly used in the production of PE foam net, it is through extruder and mold production of different sizes of products. Products are mainly used in various fruits, red wine , flowers and various fragile products packaging.

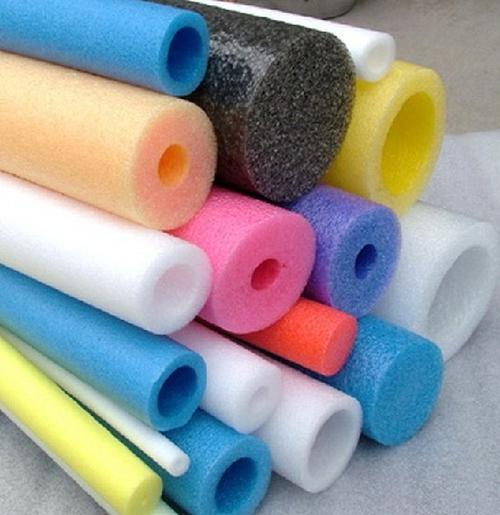

EPE foam pipe is a kind of new-type foam material and it is widely used in the jacket of air conditioner, pipeline heat insulation, toy guardrail and recreation places etc. due to its high foam ratio, good elasticity and heat preservation.
