Forming cutting, stacking are done in the same machine, saving labor improving efficiency, lowing labor intensity and reducing production cost.Production process is to put foam sheet into forming machine,and product and wastage will come out from the rear part. It can be used to produce many kinds of materials.

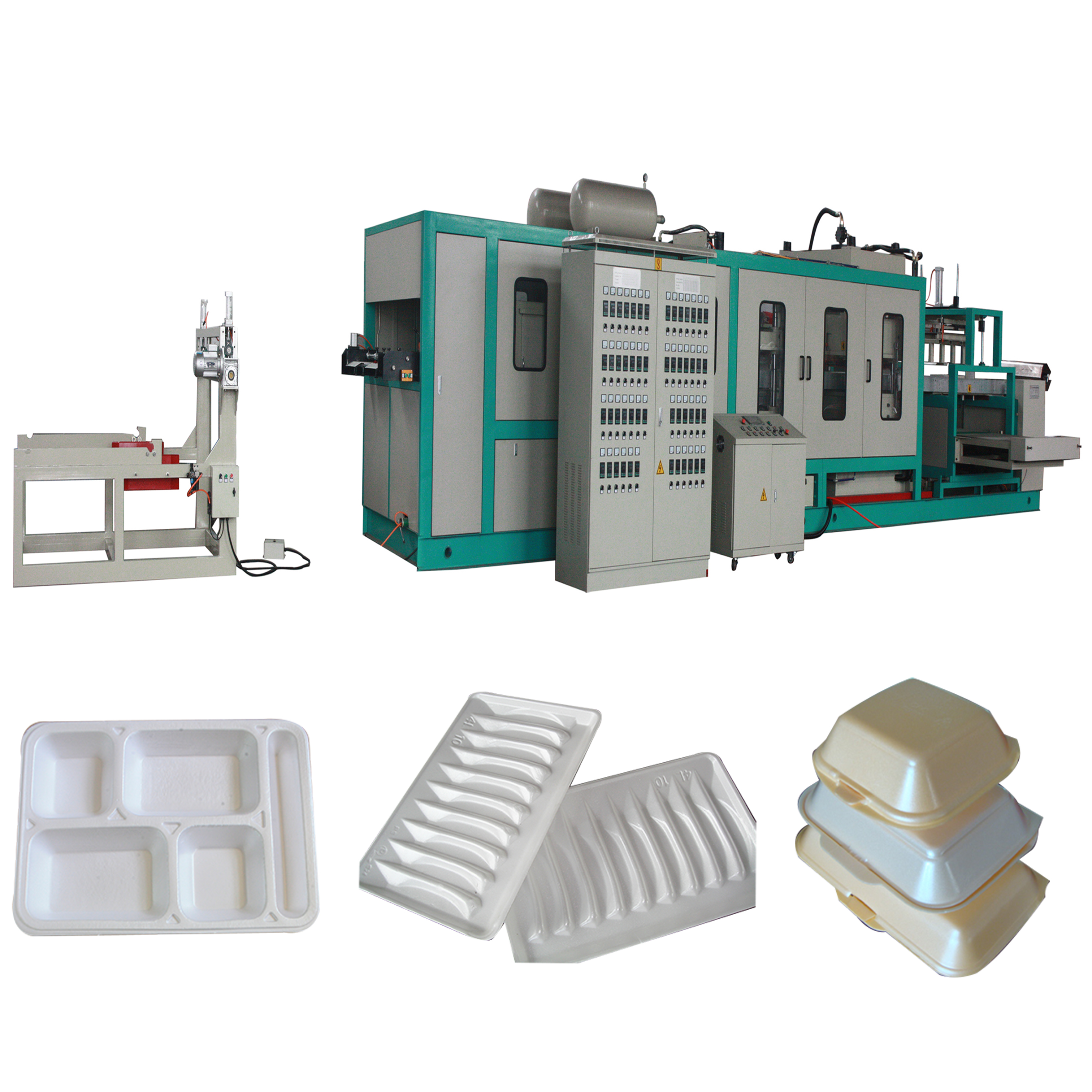

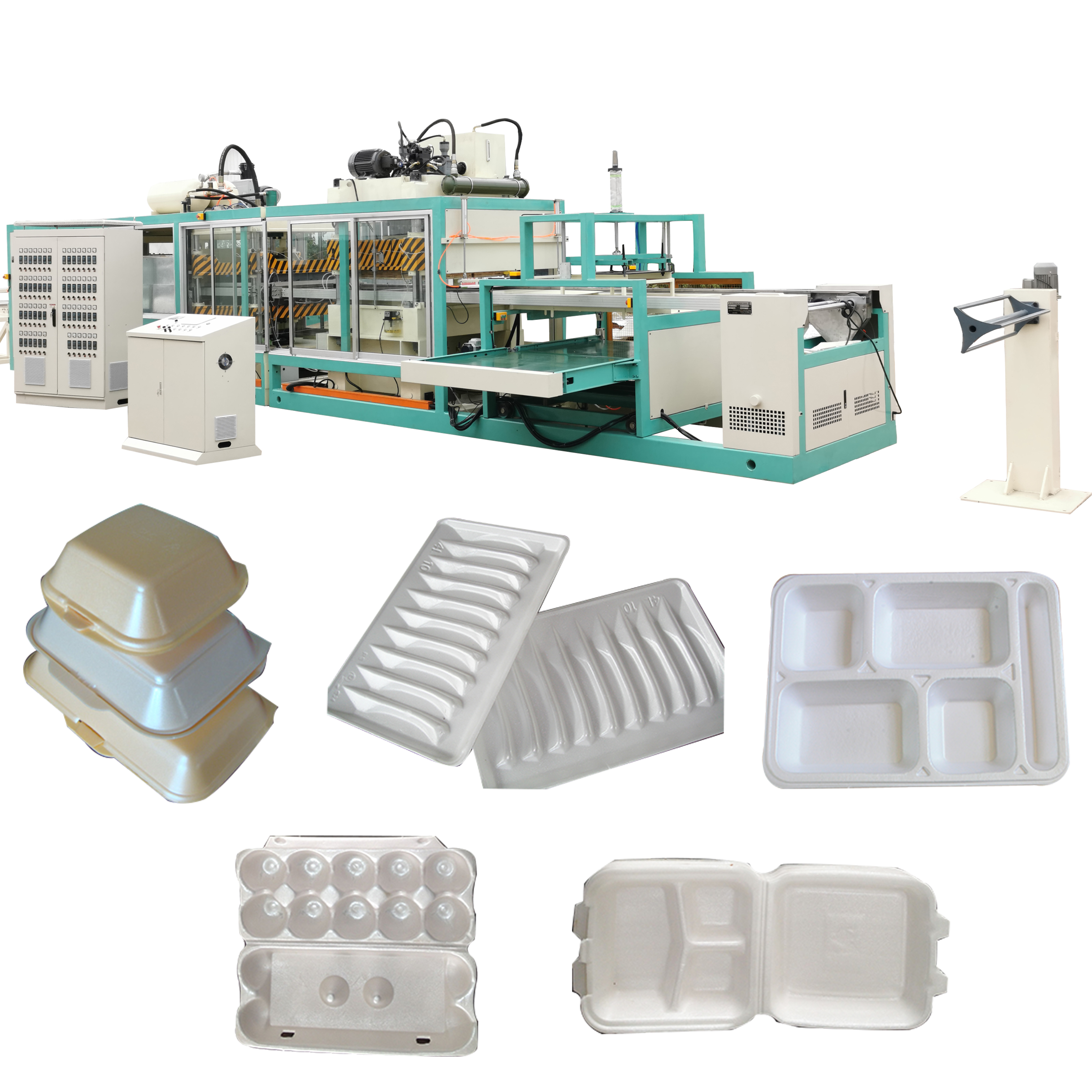

HEXING HX-1000/1100 PS Foam Food Box Thermoforming Cutting Machine is an all-in-one production equipment that integrates forming, cutting and stacking functions, specially designed for disposable foam food packaging manufacturers. This integrated foam box making machine eliminates manual transfer between processes, significantly reducing production costs and labor intensity. The streamlined production process simply requires feeding foam sheets into the machine, with finished products and waste material automatically discharged from the rear. It supports processing of various PS foam materials, making it an ideal solution for high-volume production facilities seeking operational efficiency and cost optimization.
Core Advantages
All-in-One Integrated Production System
Forming, precision cutting and automatic stacking are completed in a single machine. No need for separate cutting or stacking equipment, reducing labor requirements by up to 50% and shortening production cycle time. This integrated design also minimizes floor space occupation and simplifies production line management for manufacturing enterprises.
Stable High-Speed Mass Production
Delivers a consistent production cycle of 3-8 seconds per mold, ensuring reliable output to meet large bulk orders from catering and food packaging enterprises. The machine operates continuously with minimal downtime, maximizing daily production capacity and helping you fulfill customer orders on schedule.
Wide Material & Product Compatibility
Compatible with various standard PS foam sheets, capable of producing not only foam food boxes but also a diverse range of foam packaging products. This versatility allows you to expand your product line without additional equipment investment, catering to different market demands.
Fully Customizable Solutions
We offer multiple standard models (HX-1000/1100, HX-1100/1250, HX-1100/1400) with customizable forming areas, machine colors and auxiliary functions. Our engineering team will tailor the machine to perfectly match your existing production line and specific product requirements.
Technical Specifications
Parameter
Unit
HX-1000/1100
HX-1100/1250
HX-1100/1400
Max Forming Area
mm²
1000×1100
1100×1250
1100×1400
Production Cycle
s/mold
3-8
3-8
3-8
Total Weight
T
16
Customizable
Customizable
Installation Size (L×W×H)
m
13×2×3.2
Customizable
Customizable
Note: All models can be fully customized according to your specific production requirements.
Production Process
Feed PS foam sheets into the automatic feeding system.
Thermoform sheets into pre-designed food box shapes under controlled heating.
Automatically cut formed products to precise dimensions.
Stack finished products neatly for easy packaging and transportation.
Discharge excess waste material automatically from the rear of the machine.
Applications
This foam box thermoforming machine is widely used to produce various disposable foam packaging products, including disposable PS foam food boxes (takeaway lunch boxes, meal containers), foam fruit and vegetable trays, foam egg cartons and cake boxes, and other disposable foam packaging products for the food industry.
We understand that every production facility has unique needs. Our comprehensive customization services include custom forming area to match your product size requirements, custom machine color to align with your factory branding, optional auxiliary equipment integration (waste recycling system, automatic feeding system), customized automation level to optimize your production efficiency, and tailored mold design for your specific product shapes.
Why Choose HEXING
Professional plastic machinery manufacturer with extensive industry experience.
Strict quality control system ensuring machine durability and long-term stable operation.
Global pre-sales consultation and after-sales technical support.
On-site installation and operator training services worldwide.
Competitive pricing with excellent cost-performance ratio.
Fast delivery and reliable spare parts supply.
FAQs
What is the production speed of this foam food box machine?
Our HX series machines have a production cycle of 3-8 seconds per mold, adjustable based on product thickness and complexity.
Can you customize the machine according to my production needs?
Yes, we offer full customization services including forming area, machine size, color and auxiliary functions. Our engineers will work with you to design a solution that fits your exact requirements.
What materials can this thermoforming machine process?
It is mainly designed for PS foam sheets, and can be adjusted to process other similar foam materials upon request.
Do you provide after-sales service overseas?
Yes, we have a global service team that can provide on-site installation, training and maintenance services to ensure your machine operates smoothly.
What is the lead time for this machine?
Standard models have a lead time of 30-45 days. Customized models may require additional time depending on the complexity of the modifications.
PE automatic cutting machine is mainly based on the requirements of PE foam sheet/board for fixed length, fixed width cutting, can work online or offline, cutting size is accurate. Products are suitable for electronic products, toys, fruits, valuable or fragile items packaging, also used for mattresses, children's crawling MATS, splicing MATS, etc.
This machine is a deeply processing equipment of EPE foam sheet/film products, mainly used for the tectorial surface of EPE foam sheet/film.The material can be PE film, plated Aluminium foll, plastic-coated paper, plastic-coated fabric and so on. Laminated foam sheet increases intensity,waterproof ,and can be printed character, picture,improving the products grade, widely used for the packing of box lining, life vest, wooden floor underlayer. Car havelock,Motor adumbral cushion,household appliance.high-top Pottery and so on.
EPE foam net machine is a kind of new soft packing material. Mainly used in the production of PE foam net, it is through extruder and mold production of different sizes of products. Products are mainly used in various fruits, red wine , flowers and various fragile products packaging.
EPE foam pipe is a kind of new-type foam material and it is widely used in the jacket of air conditioner, pipeline heat insulation, toy guardrail and recreation places etc. due to its high foam ratio, good elasticity and heat preservation.
EPE foam sheet machine is a single stage extruding and foaming equipment with large L/D. It takes polyethylene resin with low density as raw material. This production line is the most ideal physical PE forming unit in the world. It has continuons stable performance with high yield,wide range of foaming ratio,high automation and reliability, products have a wide range of applications. The foam sheet has the features of dampproof , shockproof, soundproof, heat preservation and good plasticity.
Fully automatic forming and cutting machine integrates forming, cutting and stacking (trimming) at the same time. It has the features of saving labor, improving efficient, lowing labor intensity and reducing production cost. It adopts PLC controller and touch screen to control the working program.
This production line adopts double-screw foam sheet extrusion technology . PSP foam sheet is a kind of new-type packing material with the features of heat preservation, safety,sanitation and good plasticity. It’s mainly used to make various types of food containers, such as lunch box, dinner trays, bowls etc by thermoforming. It’s also can be used to make advertisement board, industrial products packing and so on. It has stable performance, big capacity, high automation and yields quality products.
XPS foam board,n amed as polystyrene extrusion board(XPS for short) has a flawless closed-pore cell structrue. Its density,water absorption, coefficient of heat conducting and the coefficient of steam pervasion are all lower that those of other board heat preservasion materials and they have the charact eristics of strong intensity, light material, airtight, anticorrosion, aging resistance, low cost, etc. It has been widely used in the fields of heat insulation in the construction indusry,frost resistance of the highway,railway,airport,square and household fitment.It is generally acknowledged the best heat preservation material in the market at present.
Pe foam recycling machine is to put PE foam products into the extruder to melt, at the same time to release the gas in the product and filter the impurities in the product, and then through the die head extrusion drawing, cooling, cutting, drying, packaging, to ensure the quality of particles.
Ps foam recycling machine is to put Ps foam products into the extruder to melt, at the same time to release the gas in the product and filter the impurities in the product, and then through the die head extrusion drawing, cooling, cutting, drying, packaging, to ensure the quality of particles.
This machine is mainly used in thickening EPE Foam Sheet with air as medium of heat conducting, making use of high temperature air to melt EPE Foam Sheet each other, then pressed by the steel roller. This thickened sheet is used widely in construction material, packaging, shoes making, bags and suitcases industry etc. reason structure, high production efficiency, easy to operate etc. The working mode of the machine is divided into vertical and horizontal, mainly according to the product fit thickness to distinguish. Vertical equipment is suitable for low thickness products, horizontal equipment is suitable for large thickness products.
